AdaptiveMedian plugins for Avisynth 2.5 and 2.6 versions, are free and the author does not give any guarentee for its operation. It may be downloaded and used at the users risk.
This is an adaptive Median Filter for eliminating certain types of noise. It uses local statistics (minimum, maximum and median values) of a moving local grid, and changes grid size depending on local statistics.
Rules implemented for processing.
starting value of grid is 3 i.e. 3x3 pixels.
Compute max, min and median of the grid
1. if median is more than minimum and less than maximium:-
if the grid center value is greater than minimum and less than maximum,the value is not changed
Otherwise center value of grid is replaced by median.
if grid size is less than maxgrid, it is increased to next step and process repeated.
Otherwise center value is unchanged.
As per theory
Quote "Ordinary median filters perform well as long as the spatial density of impulsive noise is small. Adaptive Median filter can handle impulsive noise having larger probablity. An additional benefit is this seeks to preserve detail while smoothing nonimpulse noise something that the traditional median filter does not do.
The algorithm described has three purposes.
1.To remove salt and pepper (impulse) noise.
2.To smooth other noise which may not be impulsive
3.To reduce distortionsuch as excessive thinning or thickening of object boundaries.
This plugin works in All color formats supported by avisynth version selected. In RGB color spaces, all 3 color values are processed. In case of YUY2 or Planar filtering of any plane is optional.
|Starting frame number to process||sf||integer||within clip||0|
|End frame number to process||ef||integer||within clip and not less than sf||last frame|
|Maximum size to which grid can be increased||maxgrid||integer||3 to 9||5|
|Whether Y plane is to be processed (not for RGB formats)||yy||bool||true, false||true|
|Whether u plane is to be processed (not for RGB formats)||uu||bool||true, false||false|
|Whether v plane is to be processed (not for RGB formats)||vv||bool||true, false||false|

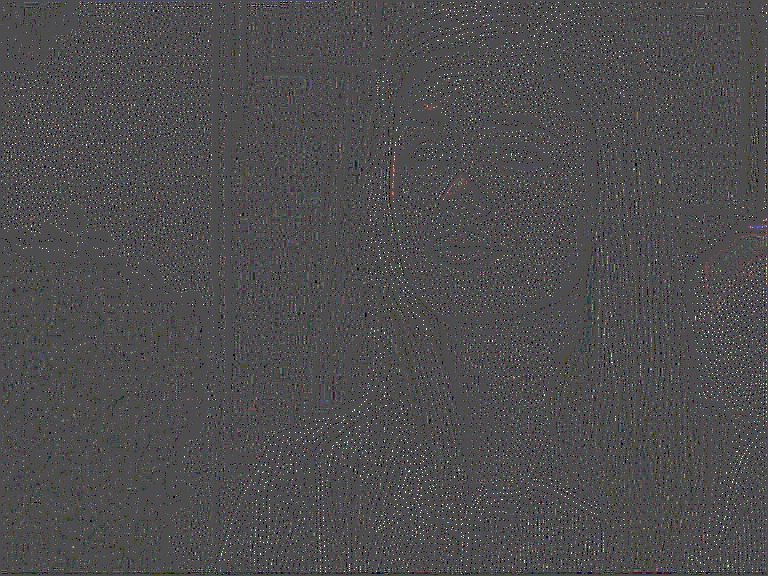

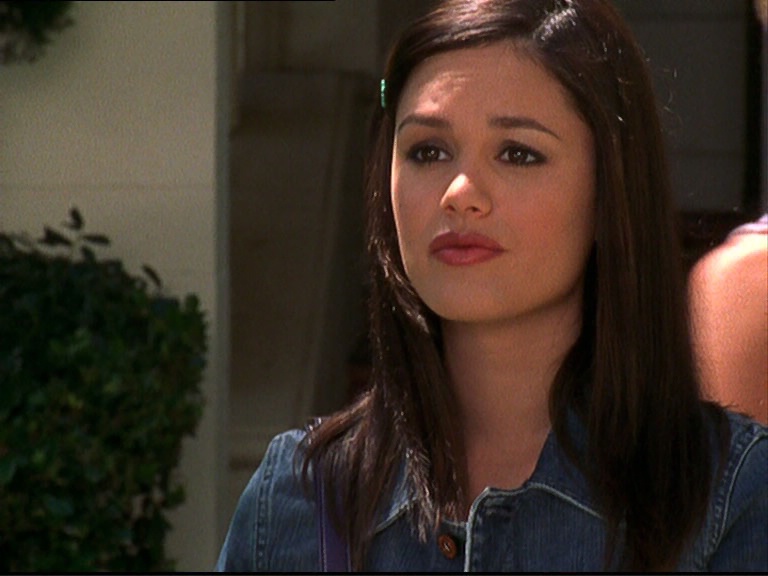

AdaptiveMedian() a = converttoYUY2() AdaptiveMedian(a, maxgrid=7, yy = false, uu = true, vv = true) # following script produced the images below converttoRGB32() adm1 = AdaptiveMedian(yy = true, uu = true, vv = true, maxgrid = 7) last + adm1 + subtract(last, adm1 ).Levels(125,1,135,0,255)
